Basic Principle

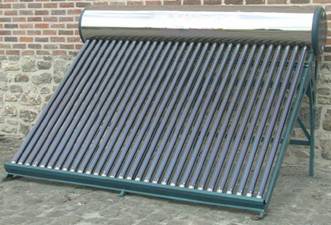

DEFINITION The thermo energy of this water boiler
comes from the sun. It is without any danger and this energy does not produce
any kind of pollution. The vacuum tubes capture the solar
energy which is immediately transformed into warmth without need for a mixer
or exchanger. The principle of warmth absorption is
not influenced by the environment, i.e. wind or external temperature. Even up
to -20°C, when the sun shines during a nice sunny day, the water temperature
can reach up to 45°C!!! INSTALLATION The SUNHYDRO water boiler can be
installed the house flat roof, sloping roof or special formed roof, even in
the garden – and hidden by plantation or surrounding vegetation. APPLICATION a) As unique water boiler The SUNHYDRO water boiler can used at a height of +/- 5 meters, without the need of a
pump. Beneath this distance, a pump should

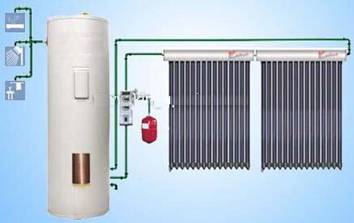

be acquired. The minimum diameter of the piping must be 18 mm. b) As water boiler in complement to
an existing system A warmth exchanger can mix both
systems (solar/ gas or electrical water boiler). The advantage is when the
electrical boiler reaches a temperature of 60°C, and there is still warm
water in the solar boiler, the latter could reach a temperature of 100°C during
sunny days!!! WORKING The boiler is filled via the same pipe
as the warm water pipe. The (city or well) water is leaded via an electrical
valve which closes as the water level reaches the maximum capacity inside the
boiler. After the first filling, the boiler
will warm up according to the solar intensity. As soon as the temperature
reaches a given temperature, it can be consummated until the water level goes
down up to 25% of the total volume. One can than manually refill with the
switch on the control board, or automatically refill at fixed hours (e.g. 8h
in the morning). GEAR The boiler. The external side is in
stainless steel (304) ; The bearer is in painted galvanized
steel (epoxy coating); The bolts are in steel (304) ; The thermo isolation is in polyurethane ; The vacuum tubes are in hard
borosilicate glass, 25 mm hailstone resistant ; CAUTION Watch out for the temperature during
maintenance of the installation as it can reach 100°C ! During long absences (e.g. summer
vacation), the tubes should be protected with some tarpaulin cover, as the
tubes can reach the temperature of 100°C in no time. Also during cold nights,
the pipe to the boiler needs to be well isolated, in order to prevent
freezing. DIMENSIONS Model Tubes Surface Content Length X Width X Height ZB160-24
1.5m x24st 2,40 m² 160 liter 1850 x 1400x1480 |
